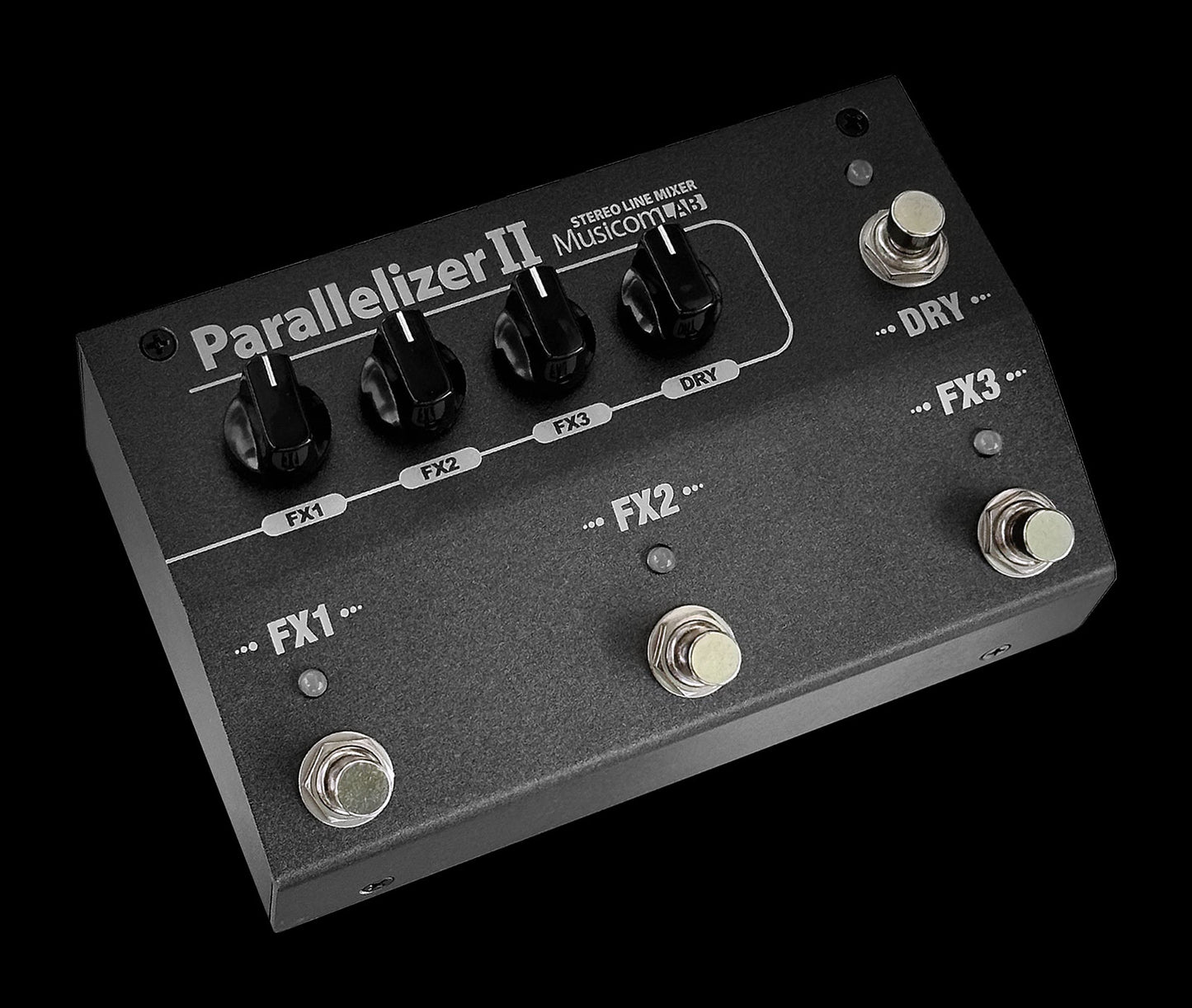

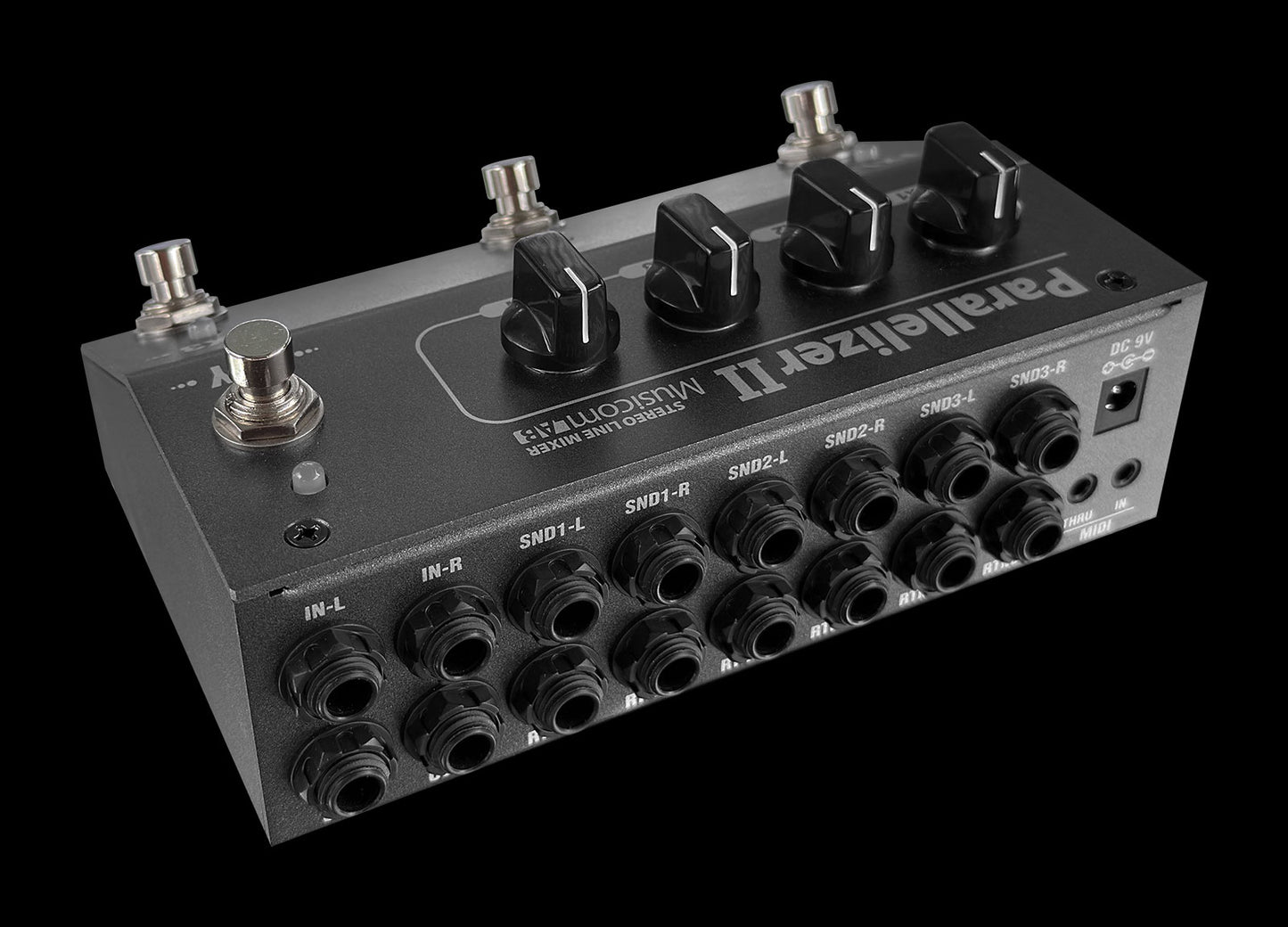

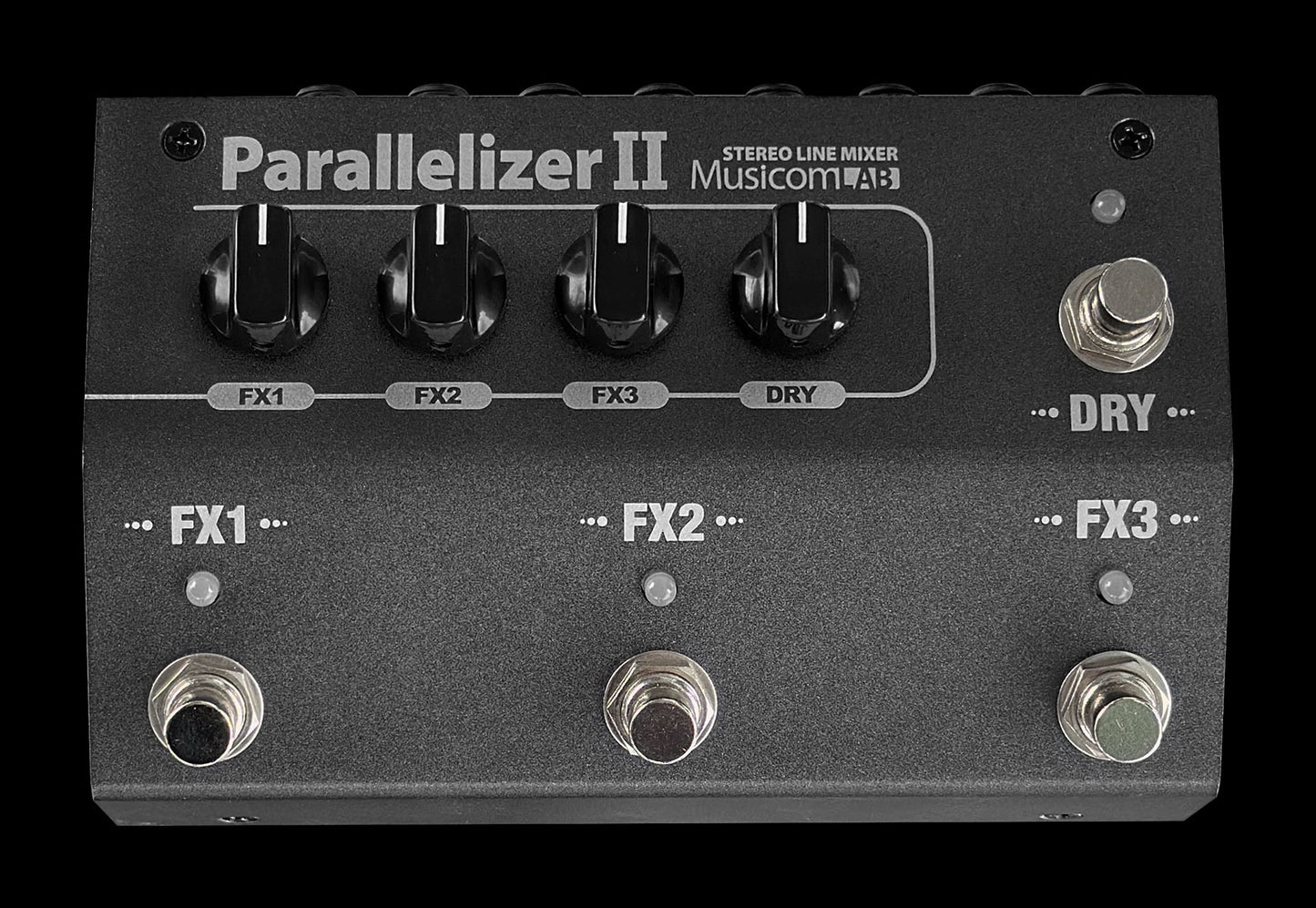

MusicomLAB Parallelizer II Stereo Line Mixer

MusicomLAB Parallelizer II Stereo Line Mixer

Regular price $319.00 USD
Regular price Sale price $319.00 USD
Sale Sold out

The MusicomLAB Parallelizer II is a parallel effect loop system that has 3 Stereo SENDs and can mix 3 Stereo RETURNs and dry signal.
You can preserve your dry signal by using the Parallelizer II, which can result in loss of dry signal when using the digital effect pedals or when connecting the effect pedals in series.
The audio signal flow of the Parallelizer II is all designed as an analog circuit. Also, components used for internal buffers, mixer circuits, etc. are high quality.
It has the MIDI IN function, which allows you to control the on/off function of the dry and each wet signal via external MIDI pedal.

Main Features

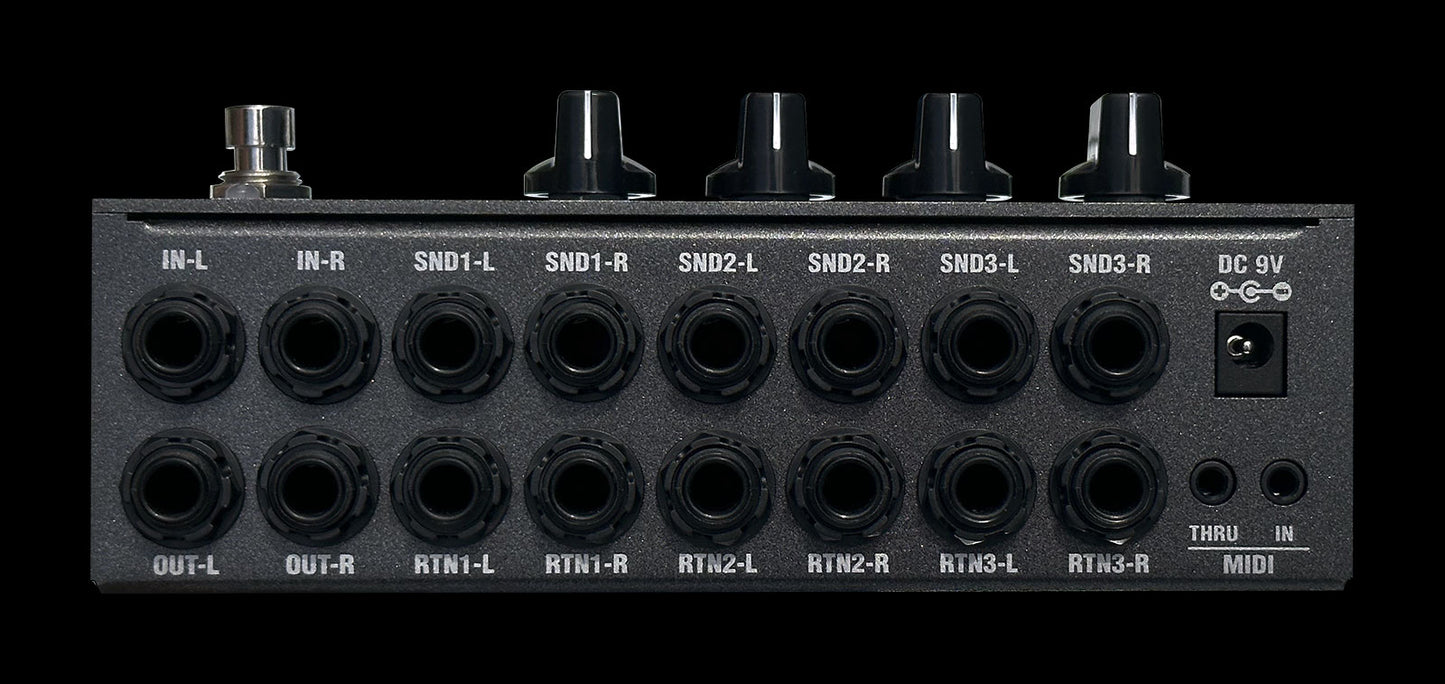

• Stereo IN, 3 x Stereo SEND, 3 x Stereo RETURN and Stereo OUT
• Adjust the effect level and dry level through each Knob
• Operates in 4 modes (Manual, MIDI PC, MIDI CC, MIDI PC+CC)
• 128 memory locations (when using MIDI PC)
• The 9V power input is converted to a +/-12V internally for any level audio signal.
• Firmware update is available via MIDI.

Specification
Input/Return Impedance           1 MΩ
Output/Send Impedance           100 Ω
Maximum Audio Signal Level    +18 dBu
Current Draw                              150 mA (DC9V)
Dimensions                                 168 x 110 x 70 mm
                                                     6.6 x 4.3 x 2.8 inches
Weight                                         670 g / 1.48 lb
