MusicomLAB EFX-LEII Audio Controller / Switcher
MusicomLAB EFX-LEII Audio Controller / Switcher
Couldn't load pickup availability

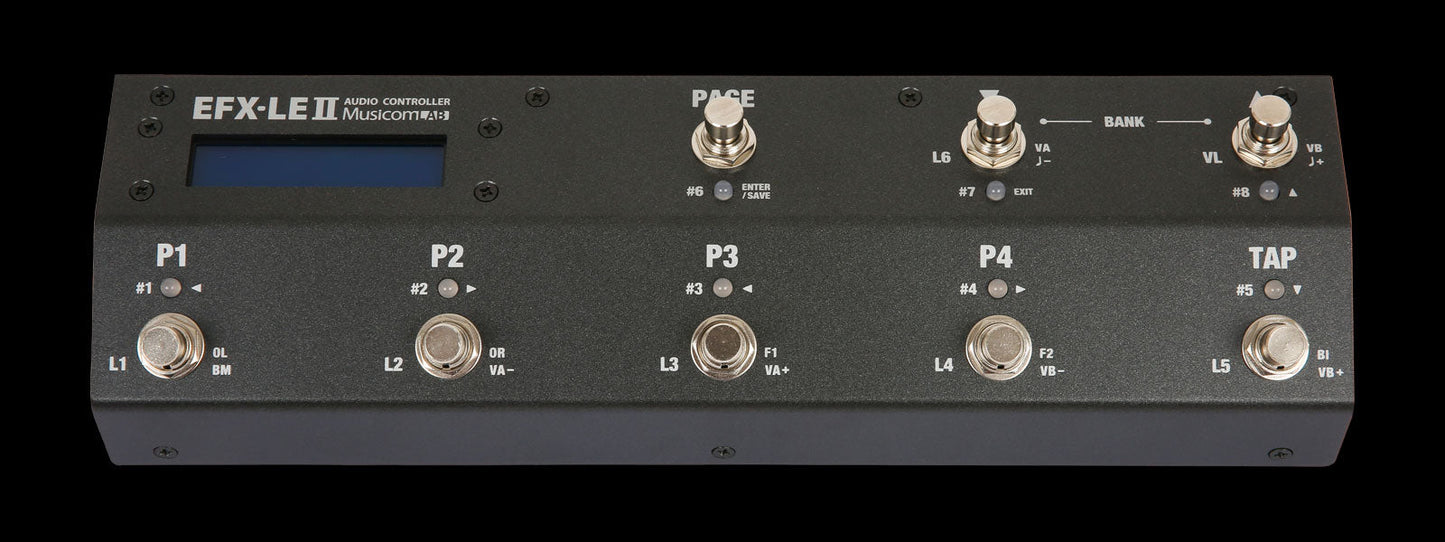

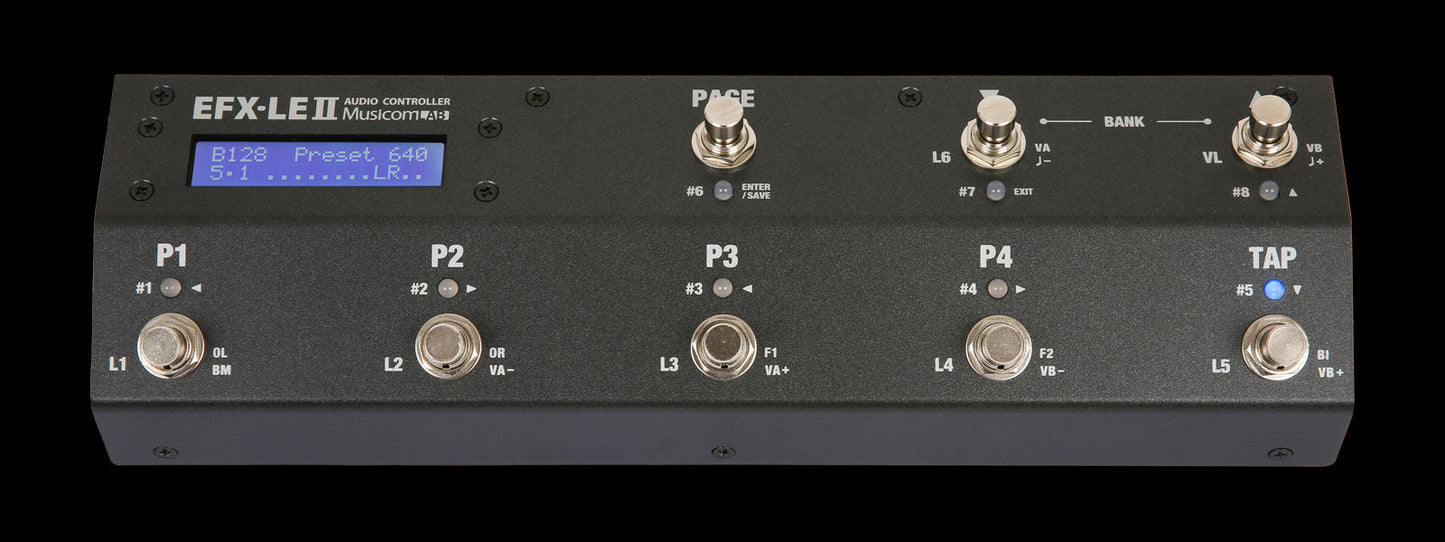

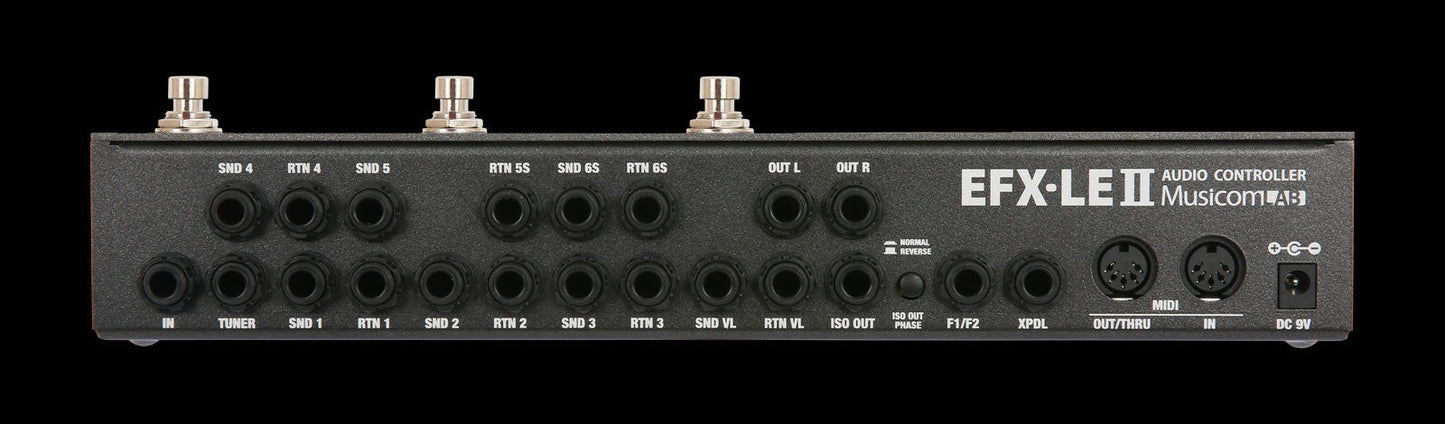

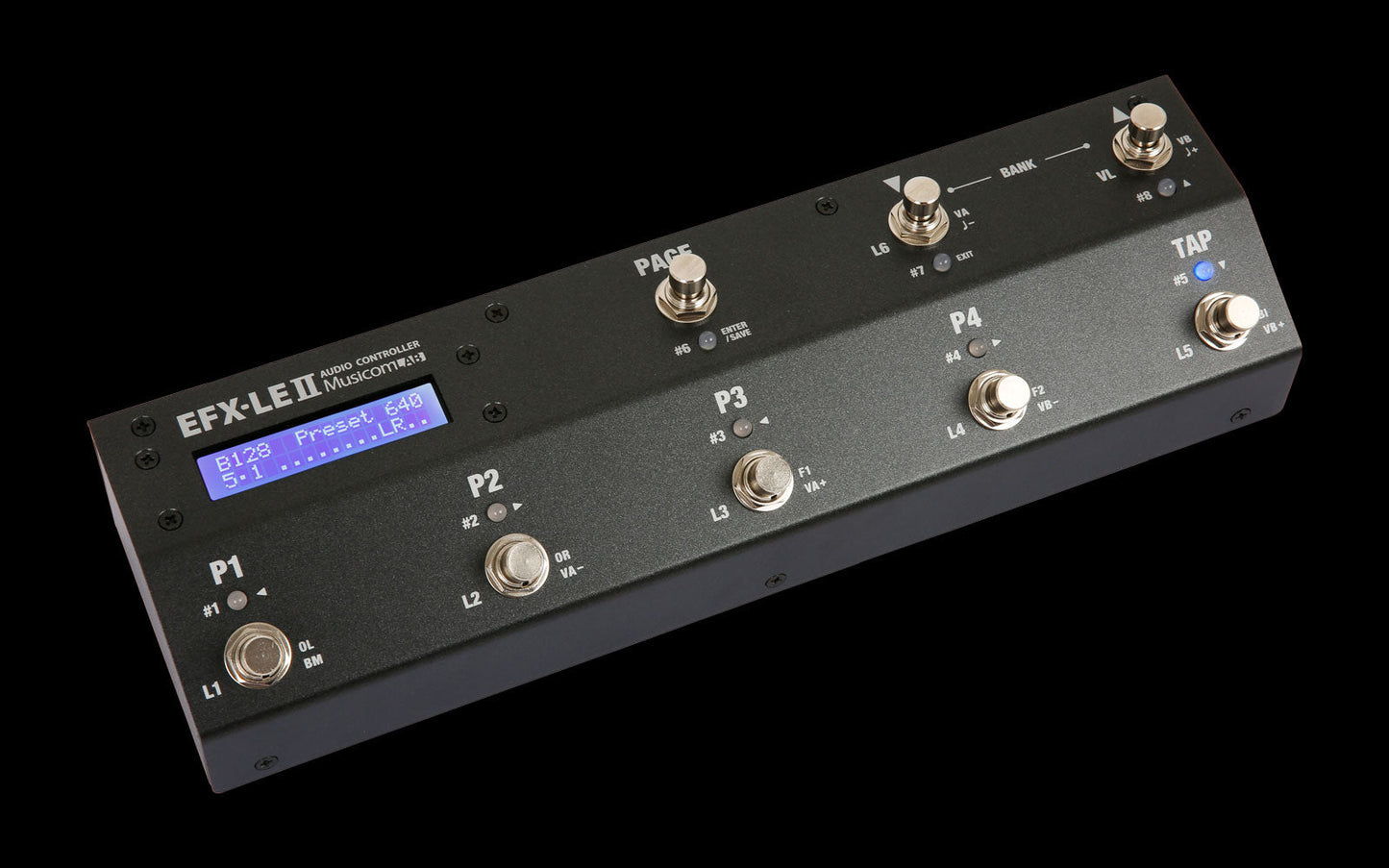

The EFX-LE Audio Controller is the ultimate floor-based switching system.It is a compact, easy to use, has 7 fully programmable loops, 2 function switches and a MIDI foot controller.The EFX-LE Audio Controller has 360 memory locations, configured as 72 banks of 5 presets, plus a global preset. It can transmit 8 MIDI Program and Control Change and messages on 8 MIDI channels and 18 MIDI Control Change messages on an appointed MIDI channel.Also one continuous controller port(XPDL) is included and can be programmed with a designated MIDI channel and controller number.The EFX-LE Audio Controller has two outputs, OUT L and OUT R, can be used as stereo outputs, or as an A/B/Y switch for a mono guitar signal. The EFX-LE Audio Controller has two low-noise, high quality buffers to prevent the loss of guitar signal. Each buffer can be bypassed/engaged per each preset.
MUSICOM LAB EFX-LE
- 4 mono loops and 2 stereo loops, plus 1 volume loop
- Changeable loop order per each preset
- 2 Buffers, Input and Movable buffers
- 2 internal unity mixers (Mixer or Spill Over)
- 361 preset memory locations
- 72 banks of 5 presets, plus a Global Preset
- 2 function control switches (Latched / Momentary)
- Mute and Click-Less functions
- Song and Set mode
- Create up to 99 songs
- Organized the 99 songs in to 40 sets of 40 songs
- 8 MIDI Program and 8 MIDI Control Change messages
- Each MIDI message can be stored in each preset
- 18 MIDI Control Change messages by assigned IA switches
- MIDI Time Clock or Analog Tempo out for TAP-TEMPO
- One expression pedal port (global / per preset)
- 2 lines x 16 characters LCD display with blue backlight
- Easily copy presets, banks, songs and sets
- Easily name presets and songs
- Heavy-duty footswitches and gold-plated relays
- Powered by 12VDC(center negative) 250mA
- Dimensions : 320(W) x 96(D) x 68(H) mm
- 12.6(W) x 3.8(D) x 2.7(H) inches
- Weight : 1,130g / 2.5lbs
